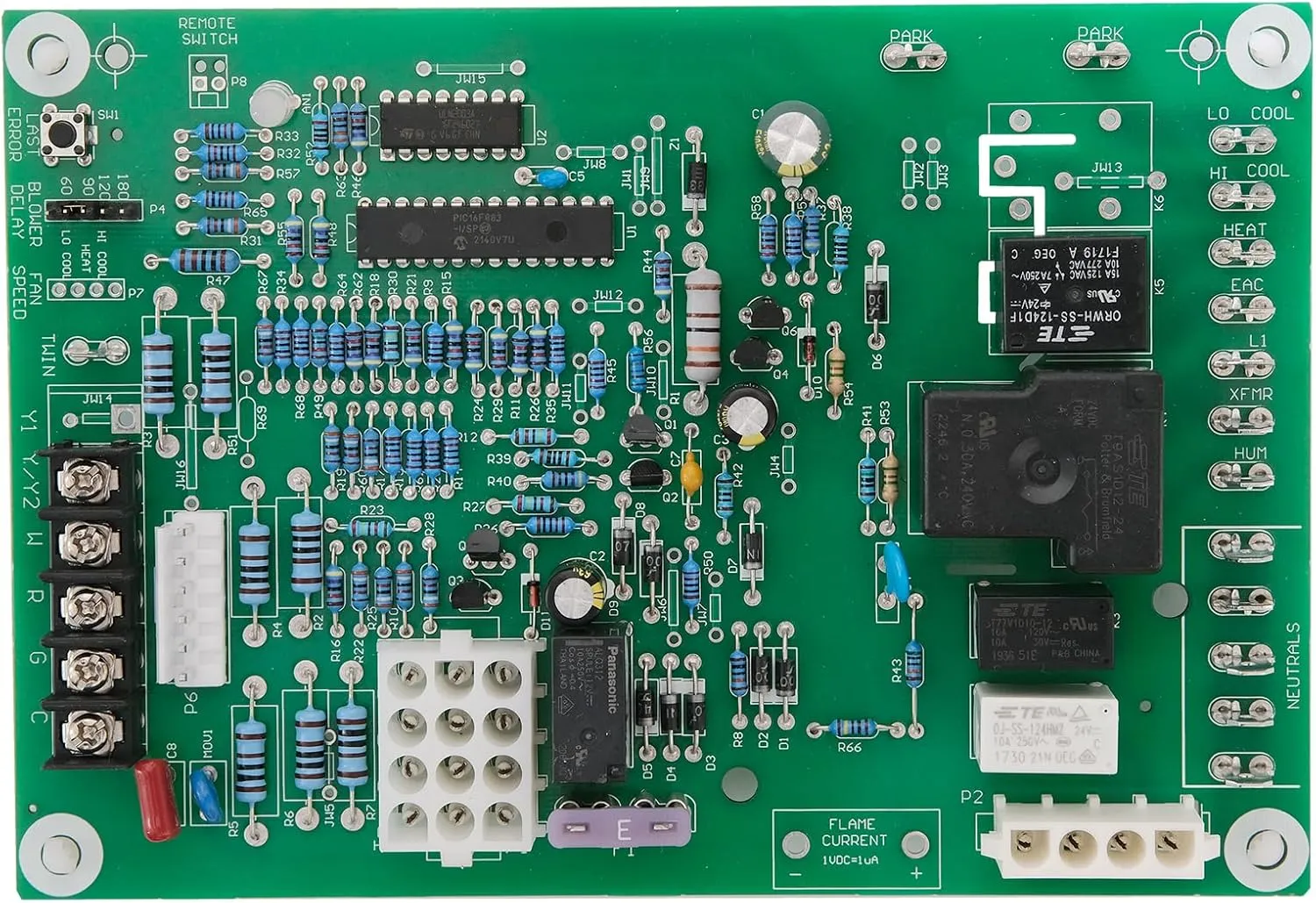

- The S1-33103010000 Control Board is an automatic gas interrupted ignition control that employs a microprocessor to continually monitor, analyze, and control the proper operation of the gas burner, inducer, and fan.These controls incorporate system fault analysis for quick gas flow shut-off, coupled with automatic ignition retry upon sensing a fault correction.
- General Informtion : This part is a direct replacement for part numbers S1-33103010000, S1-03109167000, S1-03101933000, S1-03101267000, S1-03101267001, S1-03100662000, S1-03101250000, S1-03101266000, S1-03101284000, S1-03101973000 and S1-03101972000, 265901, 265902, & 539617.
- Input Voltage : 25 VAC 50/60 Hz, Max. Input Current at 25 VAC:0.45 amp, Valve Re-lay:1.5 amp at 25 VAC 50/60 Hz 0.6 pf, Ignitor Relay: 6.0 amp at 120 VAC 50/60 Hz (resistive), nducer Relay: 2.2 FLA–3.5 LRA at 120 VAC, Circulator Relay: 14.5 FLA–25.0 LRA at 120 VAC.
- Superior Quality : advanced microprocessor-based high-precision PCB manufacturing, soldering and assembly technology, professional tests to ensure optimal performance and long-lasting reliability.Use caution when installing and ser-vicing the furnace to avoid and control electrostatic discharge.
- Note: to save yourself some hassle, please take a picture of the old one before removing it,make sure getting the wires on the correct terminals.Please feel free to contact us if you have any questions about our products, your satisfaction would be our greatest motivation.
The S1-33103010000 Control Board is an automatic gas interrupted ignition control that employs a microprocessor to continually monitor, analyze, and control the proper operation of the gas burner, inducer, and fan.These controls incorporate system fault analysis for quick gas flow shut-off, coupled with automatic ignition retry upon sensing a fault correction.
