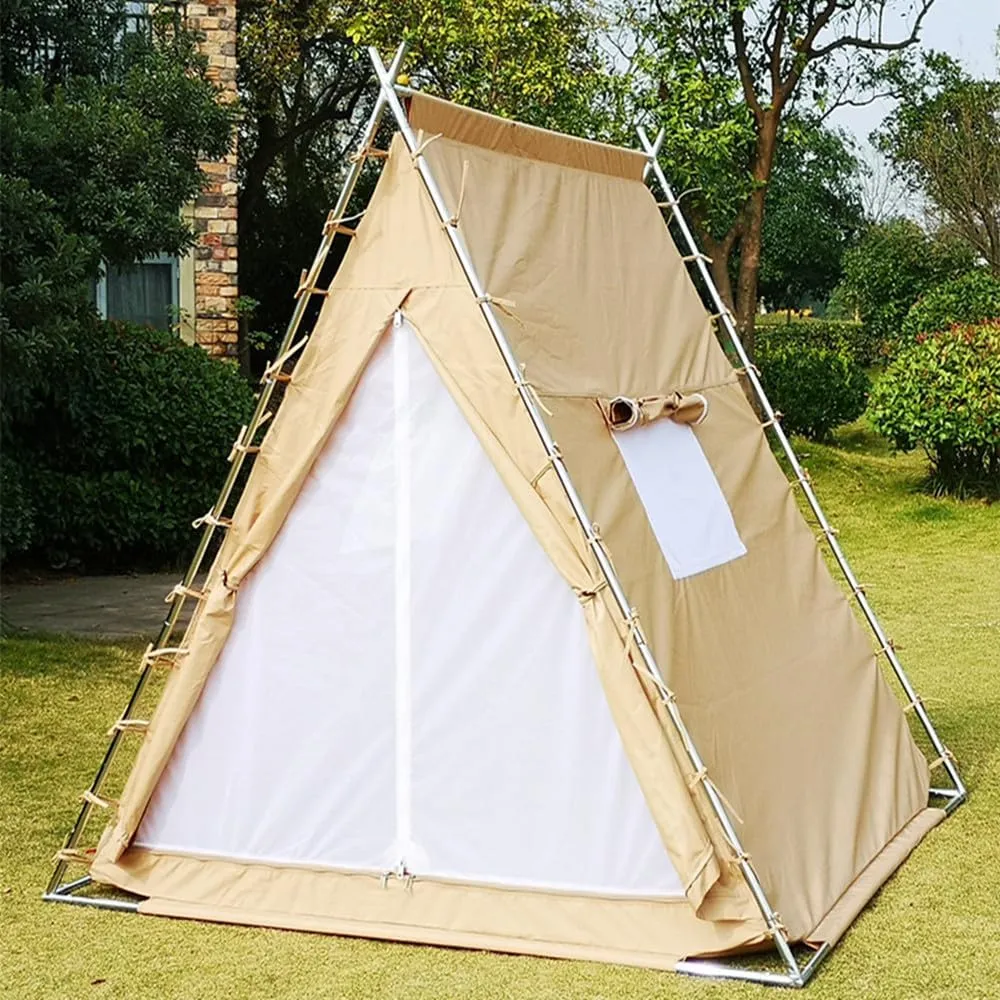

- Size：Tent come with size of 6.7ft x 6.7ft x 6.2ft, peak height of tent is 6.2ft. This tent come with shape of twin top pyramid. Can place a double air bed or place 2- 3 sleeping bags. Weight of 48.4lbs. Advise to use the tent for 2 person.
- Ventilation: The tent come with 3pcs windows and 1pc door, both door and windows come with white net to keep air circulation. The poly cotton cover can be rolled up. 1pc large door to easy come in or out.
- Material: High strength of 285gsm tear resistant khaki plaid poly-cotton with ripstop, UV resistant and waterproof. Heavy duty of 540gsm brown PVC with 5000mm waterproof PU coating. (Non-detachable) Diameter 25mm with thickness of 1.2mm of Chrome-plated steel tube. All zipper are SBS zipper.
- Feature: This tent doesn’t need to insert pegs and use ropes due to the in structure of the frame is very stable. It can be used outdoor or indoor, but please be sure you have enough space when you use it indoor.
- Remark：The space will be limited from bottom to top due to the structure of the tent, so not advisable to walk inside of tent. Please fully cover the zipper by the canvas skirt when rainy due to the zipper is waterproof. The tent has 4pcs short pole marked S, 4pcs long pole marked L and 1pc short pole marked M, 9pcs pipes in total. And it also has 4pcs three-way joints and 2pcs four-way joints. Don’t confuse the pole when assembling.
Tent Parts:
Tent Fabric x 1pc
Pole # L x 4pcs
Pole # S x 4pcs
Pole # M x 1pc
3-way joints x 4pcs
5-way joints x 2pcs
Assembling：
1.Connect all steel pole, there will have 4pcs steel poles marked L, 4pcs steel pole marked S and 1pc steel pole marked M, so total 9pcs steel poles.
2.Take out 4pcs 3-way joints and 2pcs 5-way joints.
3.Lay the tent on the ground, put the 3-way joints on the four corners of the tent.
4.Insert 4pcs #S steel poles into the sleeves of four sides of bottom fabric, and use the 3-way joint to connect the #S steel pole.
5.Insert the #M steel pole into the sleeves of top fabric, and connect the 4pcs #L steel pole with the 3-way and 5-way joints respectively.
6.Adjust the tent well and tie the fabric straps to the #L steel pole.
Maintenance:
Keep the tent clean and in bone-dry conditions when store it.
