Product Line    Gas Range
Power Type    LP, NG
Size    30"
Installation Type    Free-Standing
Factory    Springfield
Color    Stainless Steel
Cooktop
Cooking Surface Type    Gas
Grate Material    Cast Iron
Grate Quantity    3
Grate Style    Continuous
Integrated Griddle Included    Yes
Cooktop Performance
Right Front Element Burner    18000 BTU
Right Rear Element Burner    5000 BTU
Left Front Element Burner    18000 BTU
Left Rear Element Burner    7500 BTU
Center Front Element Burner    7500 BTU
Center Rear Element Burner    7500 BTU
Cooking Controls
Air Fry    Yes
Bake    Yes
Broil    Yes
Cancel    Yes
Child Lock    Yes
Clock    Yes
Convection Bake    Yes
Convection Convert    Yes
Convection Roast    Yes
Cook Time    Yes
Delay Clean    Yes
Delay Start    Yes
Door Lock    Yes
Keep Warm    Yes
Kitchen Timer    Yes
Lockout    Yes
No Preheat    Yes
Off    Yes
Oven Indicator Light    Yes
Oven Light    Yes
Preheat    Yes
Probe    Yes
Self Clean    Yes
Slow Cook    Yes
Steam Bake    Yes
Steam Clean    Yes
Steam Roast    Yes
Temperature Display    Yes
Cooking Controls Function
Adjustable Volume Feedback    Yes
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature    Yes
Delayed Bake    Yes
Program Fahrenheit or Celsius    Yes
Silent Control Panel    Yes
Oven
Bake Element    18000 BTU
Broil Element    13500 BTU
Cleaning System    Yes
Convection    Yes
Convection Element    1000 Watts
Convection Type    Total
Number of Convection Fans    1
Number of Rack Positions    7
Oven Interior Color    Midnight Black
Oven Light Quantity    2
Oven Light Type    Halogen
Oven Light Watts    40 Watts
Rack Position Type    Nickel Ladder
Rack Type 1    Handle
Rack Type 1 Quantity    1
Rack Type 2    Glide
Rack Type 2 Quantity    1
Rack Type 3    Air Fry Tray
Rack Type 3 Quantity    1
Drawer
Drawer Type    Storage
Controls
Control Lock    Yes
Sabbath Mode    Yes
Display
Control Location    Front
Display Interface Color    White
Display Type    Capacitive Touch
Exterior
Backlit Knobs    Yes
Exterior Finish    Smudge-Proof® Stainless Steel
Dimensions and Volume
Minimum Height    35 5/8"
Maximum Height    36 3/8"
Width    30"
Depth    26"
Depth With Door 90° Open    47 1/4"
Depth With Handle    28 1/2"
Oven Interior Height    20 11/16"
Oven Interior Width    25 3/16"
Oven Interior Depth    19 7/8"
Oven Capacity    6 Cu. Ft.
Electrical Specifications
Amps @ 120 Volts    12 Amps
Voltage Rating    120 V
Installation
Adjustable Leveling Legs    Yes
Included Power Cord Type    3-Prong Plug
Power Cord Included    Yes
General Specifications
Frigidaire Fit Promise    Yes
Product Weight    178 lbs
Prop 65 Label    Yes
Warranty - Labor    1 Year
Warranty - Parts    1 Year
AB-1200    Information available at frigidaire.com/en/ab1200
Certifications and Approvals
ADA Compliant    Yes
CSA Listed    Yes
RoHS    Yes
Star-K Certification    Yes
Product Information
Brand: Frigidaire
Model: PCFG3080AF

Shabbos Compliance
Sabbath Mode: Yes
Certification: STAR-K

Appearance
Fuel Type: Gas
Style: Slide-In
Color: Stainless Steel
Fingerprint Resistant: Yes
Stainless Steel Handle: Yes
Cooktop: Sealed Burner

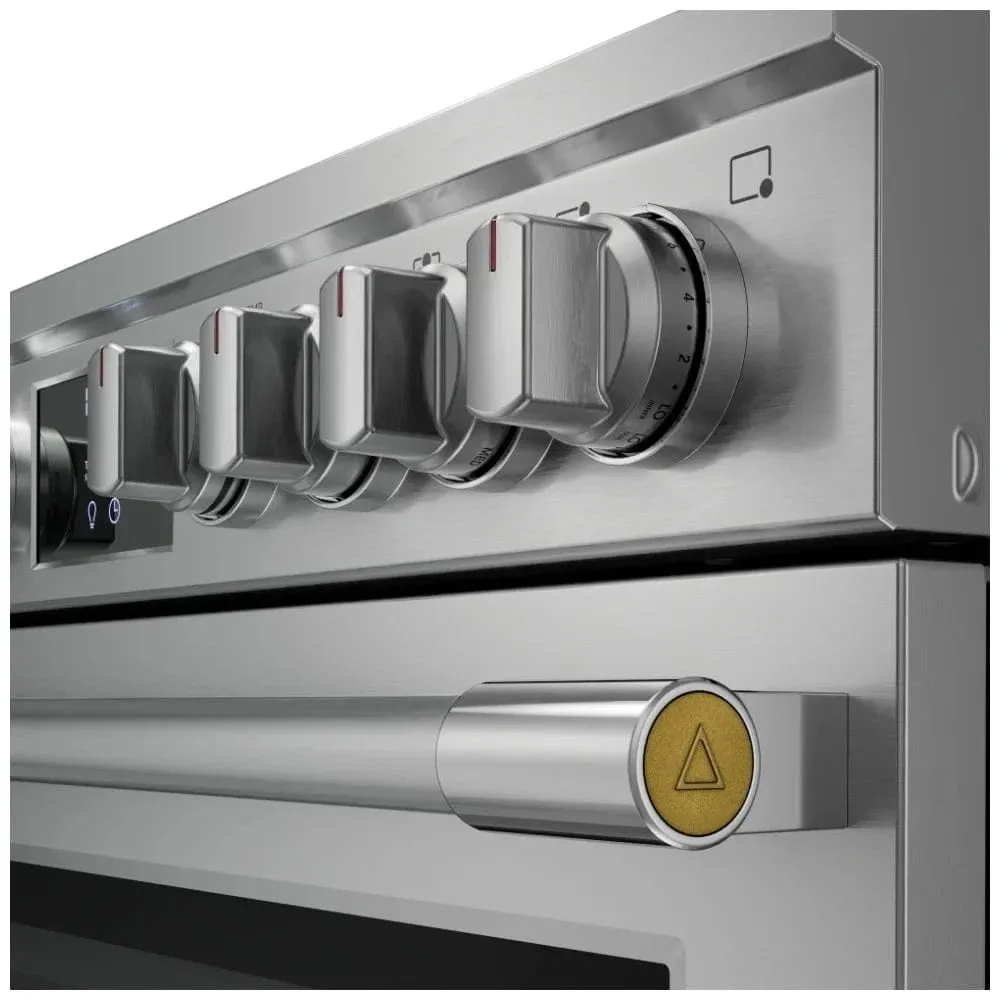

Cooktop Control Type: Knobs
Oven Control Type: Digital
Viewing Window: Yes
Double Oven: No
Drawer: Storage
Clock: Yes
Downdraft Venting: No

Smart
WiFi: No

Capacity

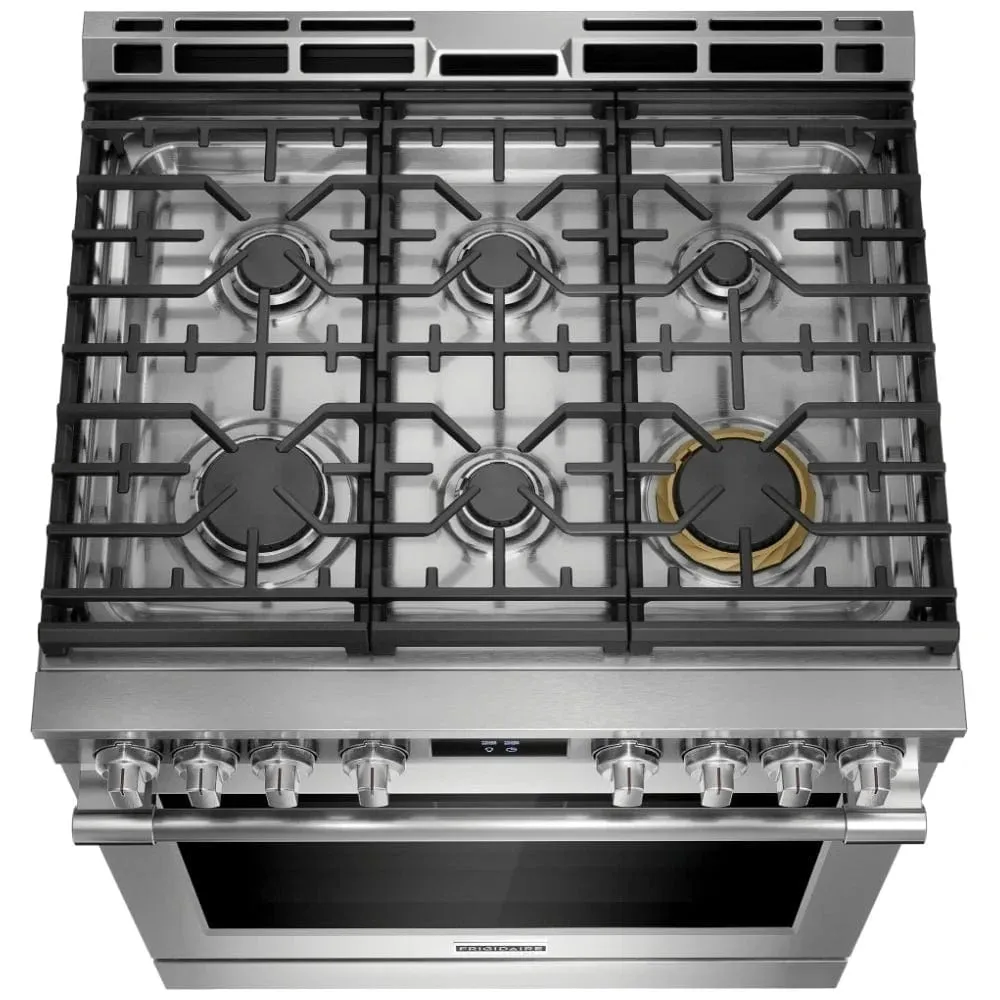

Number of Burners: 6
Gas Cooktop Features
Continuous Grates: Yes
Dishwasher Safe Grates: Yes
Cooktop Accessory: Griddle
Griddle: Yes

Oven Features
Digital Temperature Display: Yes
Timer: Yes
Fast Preheat: Yes
Convection: Yes
Glide Rack(s): Yes
Temperature Probe: Yes
Broiler Element Location: Top
Broiler Pan Included: No
Air Fry: Yes

Technical Details
ADA Compliant: Yes
Amps: 15
Voltage: 120 Volts
