Product Line Gas Range
Power Type NG
Size 30"
Installation Type Free-Standing
Factory Springfield
Color Stainless Steel

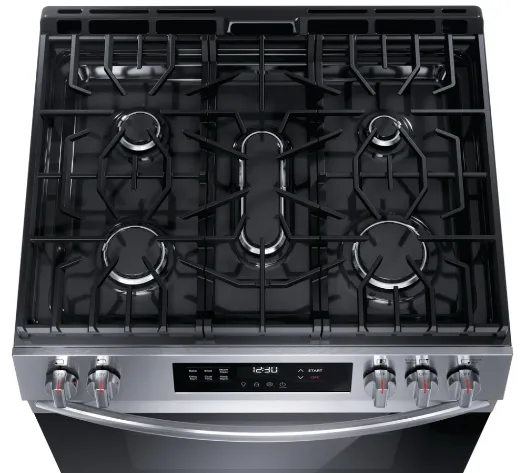

Cooktop
Cooking Surface Type Gas
Grate Material Cast Iron
Grate Quantity 3
Grate Style Continuous
Sealed Burners Yes
Cooktop Performance
Right Front Element Burner 18000 BTU
Right Rear Element Burner 5000 BTU
Left Front Element Burner 14000 BTU
Left Rear Element Burner 10000 BTU
Center Rear Element Burner 10000 BTU
Cooking Controls
Bake Yes
Broil Yes
Child Lock Yes
Clock Yes
Cook Time Yes
Delay Start Yes
Keep Warm Yes
Kitchen Timer Yes
Off Yes
Oven Light Yes
Preheat Yes
Start Yes
Steam Clean Yes
Temperature Display Yes
Timer On / Off Yes
Up / Down Arrow Yes
Cooking Controls Function
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature Yes
Delayed Bake Yes
Program Fahrenheit or Celsius Yes
Silent Control Panel Yes
Oven
Bake Element 17000 BTU
Broil Element 1400 Watts
Cleaning System Yes
Number of Rack Positions 6
Oven Interior Color Midnight Black
Oven Light Quantity 1
Oven Light Type Halogen
Oven Light Watts 40 Watts
Rack Position Type Embossed
Rack Type 1 Flat
Rack Type 1 Quantity 2

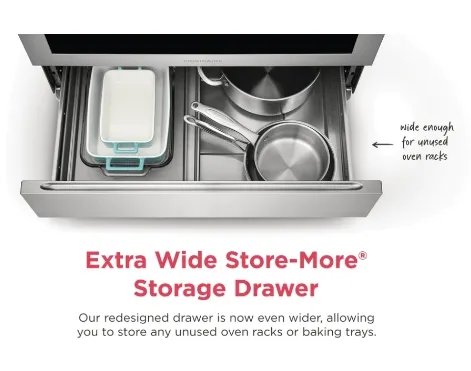

Drawer
Drawer Type Storage
Display
Control Location Front
Display Interface Color White
Display Type Capacitive Touch
Dimensions and Volume
Minimum Height 35 5/8"
Maximum Height 36 3/8"
Width 30"
Depth 26"
Depth With Door 90° Open 47 1/4"
Depth With Handle 28 1/2"
Oven Interior Height 17 5/8"
Oven Interior Width 25 3/16"
Oven Interior Depth 19 7/8"
Oven Capacity 5.1 Cu. Ft.
Electrical Specifications
Amps @ 120 Volts 12 Amps
Voltage Rating 120 V
Installation
Adjustable Leveling Legs Yes
General Specifications
Frigidaire Fit Promise Yes
Product Weight 160 lbs
AB-1200 Information available at frigidaire.com/en/ab1200
Prop 65 Label Yes
Warranty - Labor 1 Year
Warranty - Parts 1 Year
Certifications and Approvals
ADA Compliant Yes
CSA Listed Yes
